Photometric Data

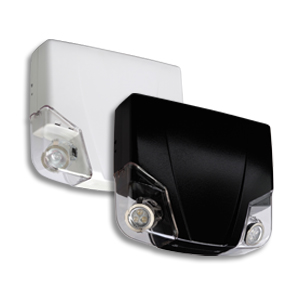

Premier battery unit



Typical spacing: two lamps centre-to-centre on a 6' wide path and 80-50-20 reflectances for: ceiling, walls and floor.
IES FILES
Lamp Part #
BULB SPECIFICATION
Isolines PFD
Cad Feet
Cad inches
Typ. spacing Two lamps 7' mounting 6' wide
Typ. spacing Two lamps 15' mounting 6' wide
MR16 12v10w E317-10
580.0099
12V10W MR16 CHF
17'
12'
MR16 12v12w E314-10
580.0080
12V 12W MR16 24DEG.CFH

E314-10 7-30.pdf
E314-10 isoline feet.zip
E314-10 isoline inches.zip
25' 17'
MR16 6v10w 9720-10
580.0079
6V 10W MR16 CHF
9720-10 7-30.pdf
9720-10 isoline feet.zip
9720-10 isoline inches.zip
21'
20'
MR16 6v6w 9719-10
580.0074
6V 6W MR16 JWO
9719-10 7-20.pdf
C9719-10 isoline feet.zip
C9719-10 isoline inches.zip
 7'
 1'
MR16 LED 12v4w H368C-10
580.0093
12V 4W LED MR16 LDT
H368C-10 7-30.pdf
H368C-10 isoline feet.zip
H368C-10 isoline inches.zip
49'
39'
MR16 LED 12v5w CF980-10 580.0104 12V 5W LED MR16 NT
 CF980-10 7-30.pdf
CF980-10 isoline feet.zip
CF980-10 isoline inches.zip
 68' 54'
MR16 LED 12v6w G776-10 580.0106 12V 6W LED MR16 NT
 G776-10 7-30.pdf
G776-10 isoline feet.zip
G776-10 isoline inches.zip
 89' 80'
MR16 LED 6v4w H369C-10 580.0097 6V 4W LED MR16 LDT
H369C-10 7-30.pdf
H369C-10 isoline feet.zip
H369C-10 isoline inches.zip
 39' 34'
