Photometric Data



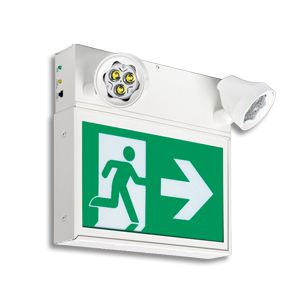

ESC



Typical spacing: two lamps centre-to-centre on a 6' wide path and 80-50-20 reflectances for: ceiling, walls and floor.
IES FILES
Lamp Part #
BULB SPECIFICATION
Isolines PFD
Cad Feet
Cad inches
Typ. spacing Two lamps 7' mounting 6' wide
Typ. spacing Two lamps 15' mounting 6' wide
MR16 12v12w E314
580.0080
12V 12W MR16 24DEG.CHF
E314 7-30.pdf
E314 isoline feet.zip
E314 isoline inches.zip
31' 19'
MR16 12v20w E313
580.0075
12V 20W MR16 Aluminum SHG
E313 7-30.pdf
E313 isoline feet.zip
E313 isoline inches.zip
54' 41'
MR16 12v35w 35MR16
580.0083
12V 35W MR16
35MR16 7-30.pdf
35MR16 isoline feet.zip
35MR16 isoline inches.zip

 96' 86'
MR16 12v35w 35MR16H
580.0090
12V 35W MR16 High-Output

130'
110'
MR16 6v10w 9720
580.0079
6V 10W MR16 CHF
C9720 7-30 G2 7-30.pdf
C9720 isoline feet.zip
C9720 isoline inches.zip
23'
22'
MR16 6v6w 9719
580.0074
6V 6W MR16 JWO
C9719 7-20 G2 7-30.pdf
C9719 isoline feet.zip
C9719 isoline inches.zip
8'
3'
MR16 LED 12v4w H368C
580.0093
12V 4W LED MR16 LDT
H368C 7-30.pdf
H368C isoline feet.zip
H368C isoline inches.zip
55'
43'
MR16 LED 12v5w CF980 580.0104 12V 5W LED MR16 NT
 CF980 7-30.pdf
CF980 isoline feet.zip
CF980 isoline inches.zip
 71' 56'
MR16 LED 12v6w G776 580.0106 12V 6W LED MR16 NT
 G776 7-30.pdf
G776 isoline feet.zip
G776 isoline inches.zip
 100' 85'
MR16 LED 6v4w H369C 580.0097 6V 4W LED MR16 LDT
H369C 7-30.pdf
H369C isoline feet.zip
H369C isoline inches.zip
 43' 36'
PAR18 12v18w H 774 9214
 580.0014
12V 8W Halogen # 774
C9214 7-20 G2.pdf
C9214 isoline feet.zip
C9214 isoline inches.zip
24'
17'
PAR18 12v9w T 915 E288
570.0025
12V 9W  # 915
 14' 8'
PAR18 6v12w H 786 9207
580.0011
6V 12W Halogen # 786
23'
16'
PAR18 6v8w H 785 9206
580.0013
6V 8W Halogen  # 785
C9206-7-20 G2.pdf
C9206 isoline feet.zip
C9206 isoline inches.zip
23'
14'
PAR18 6v9w T 908 E287
570.0016
6V 9W  # 908
12'
5'
